Panels

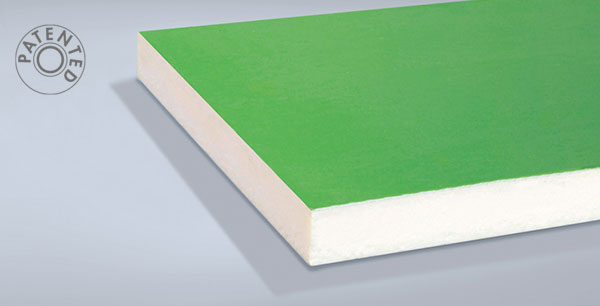

ALP micro-virus® 100
Panel dimensions: 4000×1200 mm
Panel thickness: 21 mm
Aluminum external side: 80 micron – embossed
Aluminum internal side: 80 micron – smooth treated with micro-virus
Panel weight: 1,45 Kg/m²
Stiffness: > 350.000 N•mm

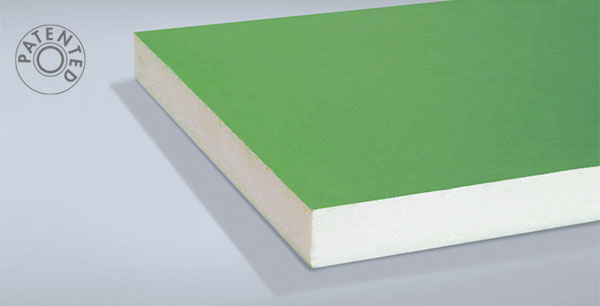

ALP micro-virus® 200
Panel dimensions: 4000×1200 mm
Panel thickness: 21 mm
Aluminum external side: 200 micron – embossed
Aluminum internal side: 80 micron – smooth treated with micro-virus
Panel weight: 2,10 Kg/m²
Stiffness: > 350.000 N•mm

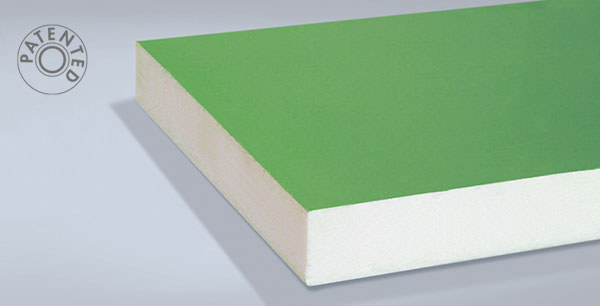

ALP micro-virus® 230
Panel dimensions: 4000×1200 mm
Panel thickness: 30 mm
Aluminum external side: 200 micron – embossed
Aluminum internal side: 80 micron – smooth treated with micro-virus
Panel weight: 2,50 Kg/m²
Stiffness: > 800.000 N•mm

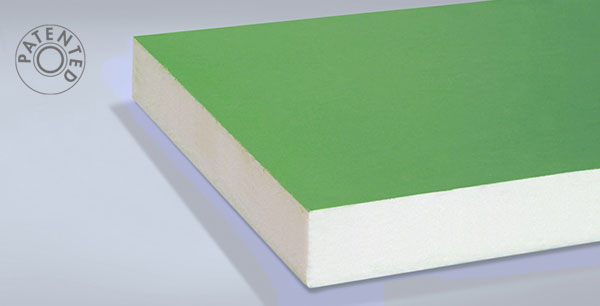

ALP micro-virus® 550/500
Panel dimensions: 4000×1200 mm
Panel thickness: 50 mm
Aluminum external side: 500 micron – embossed
Aluminum internal side: 500 micron – smooth treated with Micro-virus
Panel weight: 8,5 Kg/m2
Stiffness: > 900.000 N•mm
The surface treated with is guarded by a polyester film which is to be removed during fabrication.
ATTENTION: to realize ductwork it is necessary use the Hydro-glue (art. 202/C3A), the Aqua-seal (art. 203/CA-DA) and the aluminum tape (art. 201/BA). ALP disclaims any liability on the guarantee about the effectiveness inside the ductwork if not used with the consumption materials aforementioned.
